Genisom M1 Light Weight High Payload Quadruped Robot Dog

Most quadruped robots can walk a trail but cannot carry much more than their own sensors. The Genisom M1 Light Weight High Payload Quadruped Robot Dog turns that around: it weighs approximately 30kg and carries approximately 30kg of continuous operational load, a nearly 1:1 ratio of load to body weight. For crews who want a machine that works rather than one that demonstrates, that ratio is the story.

The product is available through this page, by quotation.

Background

The company behind the M1

GENISOM is a Beijing-based company that puts its emphasis on industry deployment. It combines robotics hardware and software, in-house core technologies and real-world application capability, rather than building for the showroom. The M1 reflects that approach. It uses joint actuator modules developed in-house by GENISOM AI, including the P85MAX-S actuator, whose peak torque reaches 180 N·m.

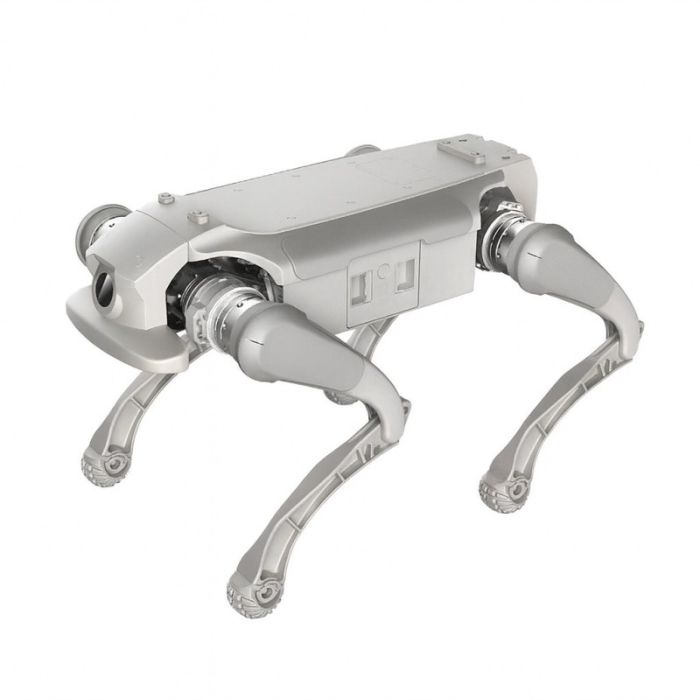

The M1 sits within a wider family. Smaller L1 models serve education and compact industrial use, while the M1 line is the heavier-duty branch with three named versions: M1, M1 Pro and M1 Ultra. If you are comparing across the range, the Standard Quadrupeds category shows how the pieces fit together.

Positioning and key technology

The M1 is the industry's first lightweight, high-load, fully protected quadruped robot. Three ideas hold that description together. The first is low weight paired with high load, which is unusual because most legged platforms need a heavy body to carry a heavy payload. The second is mobility over broken ground: continuous step climbing of 25cm, a vertical obstacle height of 80cm and a limit climbing angle of 45°. The third is endurance, through a dual battery quick-swap design that reduces time spent waiting for a recharge.

The M1 also offers 15 standard hardware interfaces, fully open. These cover communication, power and control, and are compatible with multiple carriers and computing modules. In practice this means an integrator can mount its own equipment instead of waiting for a custom build.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the charging time, the battery capacity, the maximum speed, the processor or compute module, the connectivity or the sensor list for the base version; they are confirmed at quotation.

What do the M1 Pro and M1 Ultra add to the M1?

The base M1 is the platform: weight, load, climbing ability, protection and open interfaces. The higher versions add perception and interaction on top of it, and each addition stays with its own version.

The M1 Pro supports voice dialogue, voice recording and broadcasting, and UWB and laser vision fusion tracking. That suits work where the robot talks to people, announces messages or follows a person or target through a site. The Pro has its own page: Genisom M1 Pro Quadruped Robot.

The M1 Ultra supports 720° panoramic perception, which further enhances depth perception and complex environment recognition. It is the version to consider where the robot must read cluttered or changing surroundings on its own.

The weight, load and climbing figures in the table above are those of the M1. If the Pro or Ultra figures matter to your decision, ask for them when you request your quotation.

How does the M1 handle heat, cold and long shifts?

The standard operating range of -20°C ~ 55°C already covers many sites. For harsher conditions, an optional wide-temperature battery version extends the range to -40°C ~ 80°C, which suits extreme cold and high-temperature industrial locations.

On endurance, the dual battery quick-swap design lets an operator exchange batteries instead of waiting for them to charge. The maximum no-load endurance is 5 hours / 29km. An optional smart charging station adds low-battery automatic return for recharging, which supports longer unmanned operation. Because the load-bearing figure is a continuous operational load, the robot is meant to work while carrying equipment, not just to walk without it.

Who is the Genisom M1 for?

Industrial operators are the first group: plant managers and facility teams who need a machine that crosses steps, thresholds and rough ground that stop wheeled vehicles. The 25cm continuous step height and 80cm vertical obstacle height speak directly to that need.

Integrators and research groups are the second. With 15 open hardware interfaces compatible with multiple carriers and computing modules, they can fit their own sensors, computing hardware and tools to the platform.

Security and inspection providers form the third group. Long endurance with swappable batteries, plus the optional charging station, suits patrol and long-distance rounds. If your work involves speaking with people or tracking a person, look at the M1 Pro. Teams that are only starting out with legged robots, or that work in education, may find the smaller L1 models a better first step, such as the Genisom L1 EDU Quadruped Robot. You can also browse the full Quadrupeds category.

What is the Genisom M1 used for?

1. Industrial inspection. Walking routes through plants and yards in temperatures from -20°C to 55°C, or wider with the optional battery.
2. Carrying equipment. Moving approximately 30kg of continuous load across uneven ground.
3. Long-distance patrol. Covering routes with up to 5 hours / 29km of no-load endurance and quick battery swaps.
4. Unmanned operation. Returning to an optional smart charging station when the battery runs low.
5. Payload integration. Mounting custom sensors and computing modules through 15 open hardware interfaces.
6. Difficult terrain access. Climbing 25cm steps, 80cm vertical obstacles and 45° slopes where wheels would stall.

Pricing and Availability

No prices are shown on this page. A quotation is the way to proceed: tell us your site conditions, payload and the version you need, and we will respond with a proposal. Delivery, customs and support are arranged together with the quotation. The Genisom M1 Light Weight High Payload Quadruped Robot Dog is available on this page.

Frequently Asked Questions

How much can the Genisom M1 carry?

The M1 carries approximately 30kg of continuous operational load on a robot of approximately 30kg total weight, a nearly 1:1 ratio.

What obstacles can it climb?

It climbs continuous steps of 25cm, clears a vertical obstacle height of 80cm and manages a limit climbing angle of 45°.

What temperatures can it work in?

The operating range is -20°C ~ 55°C. An optional wide-temperature battery version extends this to -40°C ~ 80°C.

How long does the battery last?

The dual battery quick-swap design gives a maximum no-load endurance of 5 hours / 29km, and an optional smart charging station handles automatic return for recharging.

Can I attach my own equipment?

Yes. The M1 has 15 standard hardware interfaces, fully open, covering communication, power and control, compatible with multiple carriers and computing modules.

Which version offers voice and panoramic perception?

The M1 Pro supports voice dialogue, voice recording and broadcasting, and UWB and laser vision fusion tracking. The M1 Ultra supports 720° panoramic perception.

Where can I buy the Genisom M1 and what does it cost?

The robot is available through this page, by quotation. No price is shown here; request a quotation and we will answer with a proposal for your version and site.

Summary

The Genisom M1 answers a simple question: can a robot dog be light and still carry a real load? With approximately 30kg of body weight, approximately 30kg of continuous load, strong climbing figures, swappable batteries and open interfaces, it is built to be useful on site. The Pro and Ultra versions add voice, tracking and panoramic perception for more specialized work. For a quotation on the version that fits your project, this page is the starting point.
