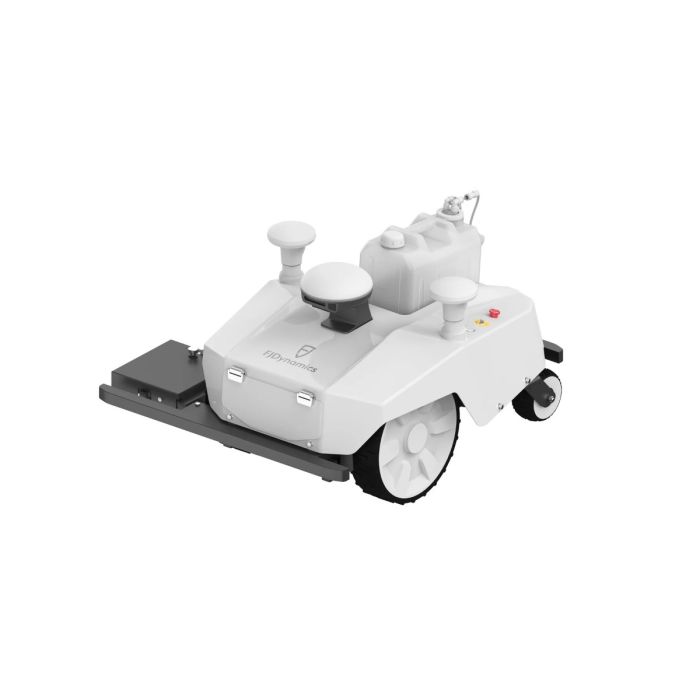

FJD PaintMaster Pro + Free Delivery

Painting a sports field is easy to start and hard to repeat. The first pass looks sharp, but the tenth, in fading light and with the paint running low, is where crooked lines creep in. The FJD PaintMaster Pro + Free Delivery is a robotic line marker built for that repetition. It follows a stored layout, watches its path with a camera, and goes back to refill on its own.

The product is available through this page, by quotation.

Background

FJDynamics and its turf robots

FJDynamics builds autonomous machines for grounds care, and its range includes robotic mowers for lawns, golf courses and sports fields. The PaintMaster Pro belongs to the hard-surface and sports-field side of that family, where the job is not cutting grass but putting precise lines on it. The manufacturer pairs its robots with a digital platform, so one team can assign work and follow progress across several machines instead of walking every field.

That lineage shows in the design. The robot uses satellite positioning of the kind FJDynamics applies across its mowers, and it carries the same fleet-management thinking: tasks are planned in software, sent to the machine, and monitored remotely.

Where the PaintMaster Pro sits

The PaintMaster Pro is the full-size line marker in the range. Its standard configuration carries a 1 kWh battery and a 25 L paint tank, and both can be swapped for smaller options: a 0.5 kWh battery and a 20 L tank. Smaller venues or lighter-duty programs may be better served by the compact FJD PaintMaster Mini + Free Delivery, while the Pro is aimed at teams with larger or more frequent marking schedules. You can browse related equipment in our Commercial Robots category.

Positioning comes from two industrial-grade GNSS systems working with a local base station, which gives centimeter-level accuracy. Where satellite signals are weak, such as under trees or near stands, FJD's laser kit can be paired with the robot for millimeter-level marking precision.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the ingress protection rating, the drive type and motors, the maximum coverage area per hour, a numeric positioning accuracy figure or the box contents list; they are confirmed at quotation.

What makes the PaintMaster Pro different from a manual line marker?

A manual marker depends on the person pushing it. Speed varies, strings and wheels drift, and every repaint of a pitch starts with measuring again. The PaintMaster Pro replaces that routine with a stored map. Its field library holds more than 250 templates, so a standard layout can be selected rather than surveyed from scratch, and the marking width can be set anywhere from 6 to 17 cm.

The refill behavior matters just as much. When paint runs low, the robot can return to a designated refill point and then continue the unfinished task after refilling. A crew does not need to stand beside the machine, judge when the tank is nearly empty and work out where the line stopped. The robot keeps that record itself.

Mapping is also lighter. The manufacturer offers a portable handheld point marker that completes mapping in just minutes, which reduces the need to drive the robot to the site first. For a grounds team covering several venues, that saves a trip before each new layout.

What does the optional configuration change?

The standard PaintMaster Pro carries a 25 L tank and a 1 kWh battery. With the 1 kWh battery the manufacturer states a runtime of up to 10 hours and a charging time of approximately 4 hours. Those runtime and charging figures belong to the 1 kWh battery only; the manufacturer does not publish equivalent figures for the 0.5 kWh option.

The 20 L tank and the 0.5 kWh battery are offered as options. A smaller tank can suit a site where refill points are close and the layouts are short, while the larger standard tank suits long runs of line work. Which pairing fits your venues is a conversation to have when the quotation is prepared.

Who is the PaintMaster Pro for?

Sports-field managers are the clearest fit: municipal parks departments, school districts, clubs and stadium grounds teams who repaint the same layouts week after week. Consistent lines matter to them, and so does the time spent on each repaint.

Contractors who mark several venues will value the multi-robot management. Tasks can be assigned and monitored across multiple robots when marking schedules scale up, and the two factory-installed SIM cards simplify activation and access to supported mobile connectivity and RTK correction services.

Sites with uneven ground are covered too, since the robot climbs up to 20°. For smaller facilities with lighter needs, the FJD PaintMaster Mini + Free Delivery is worth comparing before you decide.

What is the PaintMaster Pro used for?

1. Football and soccer pitches: repeatable touchlines, penalty areas and center circles from stored templates.
2. Multi-sport fields: switching between layouts on the same turf without re-measuring each time.
3. Track and athletic venues: marking lanes and field-event areas where straight, even lines are expected.
4. Match-day preparation: night or early-morning work, supported by a binocular camera that stops the robot when it detects an object.
5. Tree-lined and stand-adjacent grounds: marking where GPS is difficult, with the laser kit for millimeter-level precision.
6. Multi-site programs: managing several robots and schedules from one platform as the workload grows.

Pricing and Availability

Pricing is prepared as a quotation, because the configuration, with its battery and paint tank options, shapes the offer. Delivery, customs and support are arranged with the quotation. Send us your venue types, preferred configuration and location, and the PaintMaster Pro is available on this page.

Frequently Asked Questions

How fast does the PaintMaster Pro mark a line?

Marking speed is 1–3 km/h (0.6–1.9 mph). Line width can be set from 6 to 17 cm (2.4–6.7 in).

What happens when the paint runs low?

The robot can return to a designated refill point and continue the unfinished task after refilling. The standard tank holds 25 L (6.6 US gal), and a 20 L (5.3 US gal) tank is optional.

How long does the battery last?

With the 1 kWh battery, runtime is up to 10 hours and charging takes approximately 4 hours. A 0.5 kWh battery is optional.

How accurate is the positioning?

Two industrial-grade GNSS systems and a local base station deliver centimeter-level accuracy. With FJD's laser kit, the robot offers millimeter-level marking precision in GPS-challenging areas.

Can it work on slopes and at night?

It climbs up to 20°. A binocular camera stops the robot automatically when it detects an object during marking, and the manufacturer states consistent performance even at nighttime.

Can I manage more than one robot?

Yes. Tasks can be assigned and monitored across multiple robots, and 250+ field templates are available for planning layouts.

Where can I buy the PaintMaster Pro and what does it cost?

It is available through this page, by quotation. Contact us with your configuration and location, and the quotation will cover price, delivery, customs and support.

Summary

The difficulty with field marking is repetition, and the PaintMaster Pro answers it with stored layouts, camera-assisted safety, automatic refill and resume, and fleet management for growing schedules. Its standard 1 kWh battery and 25 L tank suit long working days, while smaller options are there when the site calls for them. If you want to see how it fits your grounds, this page is the starting point.
