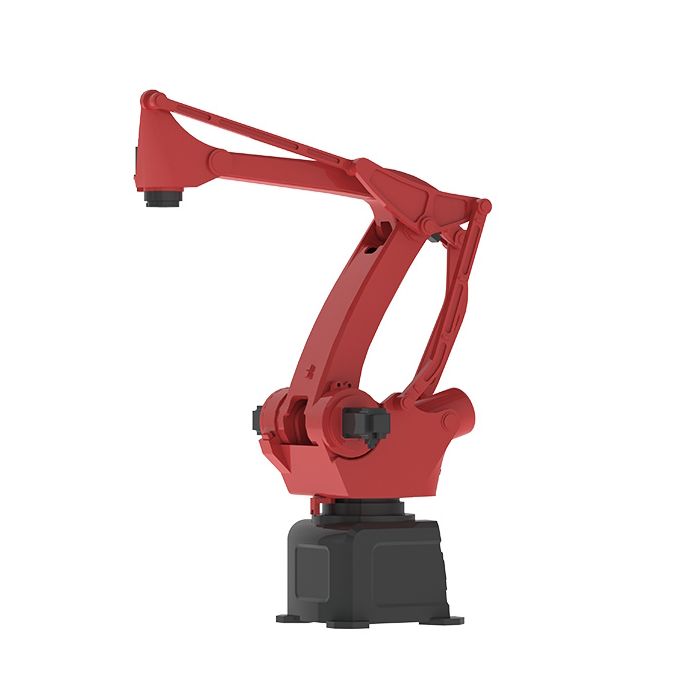

SIASUN SP160-160-3.05 (SP160-160/3.05)

Most robots are admired for how nimbly they move. The SIASUN SP160-160-3.05 (SP160-160/3.05) is judged by a plainer measure: how much it can lift, how far it can place it, and whether it can do so again and again without complaint. It is a floor-mounted industrial robot with a 160 kg payload and a reach of 3050 mm, made for the work at the end of a production line, where products are gathered, moved and stacked. For a plant in the Caribbean that ships food, drinks, building supplies or packaged goods, that kind of steady strength matters more than a long list of tricks.

The product is available through this page, by quotation.

Background

SIASUN and its place in industrial automation

SIASUN is a Chinese robotics and automation brand whose catalog covers industrial arms, mobile robots for heavy loads, and automation solutions for sectors such as electronics. Its range runs from machines that carry loads across a factory floor to arms fixed at a single station. If you are exploring the wider range, the SIASUN category shows the other products we offer from this brand.

The SP160-160/3.05 belongs to the fixed-arm side of that range. The model code is also written SP160-160-3.05, and both spellings refer to the same robot. It is built around the SRC E5 control system, which governs the arm and its motion.

Positioning: a strong arm with palletizing software

The SP160-160/3.05 has 4 degrees of freedom. Fewer joints than a general-purpose arm is a common choice for stacking work, where the job is to lift a load, carry it across a wide area and set it down in a pattern. The robot is equipped with special software for palletizing, so the stacking task is part of its design rather than an afterthought.

It is also suited to assembly, handling (loading and unloading), welding and other production links, with the aim of raising the flexibility and efficiency of the production line. Palletizing is the headline, but the range of uses is wider than a single task.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the dimensions, the operating temperature, the included accessories, the arm structure weight at the wrist or the allowable moment of inertia; they are confirmed at quotation.

What makes the SP160-160/3.05 different from a general-purpose robot arm?

The first difference is purpose. A general-purpose arm is built to reach into awkward places and turn a tool through many angles. This robot is built for heavy, repeated moves over a large working area. Its 160 kg payload and 3050 mm reach are the figures that define it, and they suit stacking cartons, sacks and crates onto pallets, where a long reach lets one robot serve a conveyor and several pallet positions.

The second difference is the software. The robot comes with special software for palletizing, which means the stacking task is something the controller is prepared for. For a plant that wants to start palletizing without building the logic from scratch, that is a practical advantage.

The third difference is the physical setup. The robot is mounted on the floor and weighs 1000 kg, so it is a fixed installation planned into the layout of the line, not a unit that is moved from place to place. The plant should plan its foundation and safety fencing together with the integrator, and the quotation is the right point to settle those details.

Is the SP160-160/3.05 precise enough for production work?

The repeatability is ± 0.2 mm, which means the arm returns to a taught position with that tolerance. For stacking, this keeps layers aligned and loads stable. For assembly and handling tasks, it supports consistent placement from one cycle to the next.

The protection rating is IP53. That tells you how the enclosure copes with dust and water spray, which is worth weighing against the conditions of your plant. If your site is hot or humid, a common concern in the Caribbean, tell us when you request your quotation and we will go through it with you.

On the electrical side, the robot draws 8 kVA, so your electrical contractor can size the supply to match.

Who is the SIASUN SP160-160-3.05 for?

This robot is for manufacturers and distributors who move heavy, repetitive loads at the end of a line. Beverage and food producers, building materials suppliers, packaging plants and general manufacturers are typical examples of businesses that stack goods onto pallets every shift. If your team lifts sacks or cartons by hand at the end of the line, a robot of this class can take over the heaviest part of that work.

It also suits plants that want one robot for more than a single job. Because assembly, handling and welding are all suitable uses, the arm can serve in several places along a production line.

It is less suited to businesses that need to move loads across a whole warehouse. For that kind of work, look at the mobile robots in the SIASUN range, such as the SIASUN 2000 Kg Forklift Mobile Robot (Handling B20S-1), which are designed to travel rather than stand at a fixed station.

What is the SIASUN SP160-160-3.05 used for?

1. Palletizing: stacking cartons, sacks and crates onto pallets with the dedicated palletizing software.
2. Handling: loading and unloading goods at stations along the production line.
3. Assembly: placing and joining heavy parts in assembly steps that suit a fixed arm.
4. Welding: serving welding stages along the line.
5. Line flexibility: adding an arm that can be placed where the line needs it to raise efficiency.
6. Repeated end-of-line work: taking over the heavy, repetitive lifting that tires a manual team over a full shift.

Pricing and Availability

We do not print prices for this robot. Please ask for a quotation and tell us about your line, the loads you handle and the site conditions. Delivery, customs and support are arranged together with the quotation, so you receive one clear plan from us rather than separate pieces to organize. The SIASUN SP160-160-3.05 (SP160-160/3.05) is available on this page.

Frequently Asked Questions

What payload and reach does the SP160-160/3.05 have?

The robot has a payload of 160 kg and a reach of 3050 mm. Together these define the size of load and the working area it can serve.

How accurate is it?

The repeatability is ± 0.2 mm. This is the tolerance with which the arm returns to a taught position.

Which controller does it use?

It uses the SRC E5 control system. The robot is also equipped with special software for palletizing.

How is it installed?

The robot is mounted on the floor and weighs 1000 kg. It draws 8 kVA, so the supply should be sized to suit.

What protection rating does it have?

The protection rating is IP53. Tell us about your site conditions when you ask for a quotation.

Is it only for palletizing?

No. Palletizing is its main strength, but assembly, handling and welding are also suitable uses.

Where can I buy the SIASUN SP160-160-3.05 and what does it cost?

You can request it through this page, by quotation. We do not print prices; the quotation covers the robot, delivery, customs and support for your site.

Summary

The SIASUN SP160-160-3.05 (SP160-160/3.05) is not a robot that tries to do everything gracefully. It is a strong, floor-mounted arm with a 160 kg payload, a 3050 mm reach, ± 0.2 mm repeatability and software made for palletizing, and it is at its best where heavy loads must be stacked reliably, shift after shift. If you are planning to automate the end of your line, this page is the starting point.
