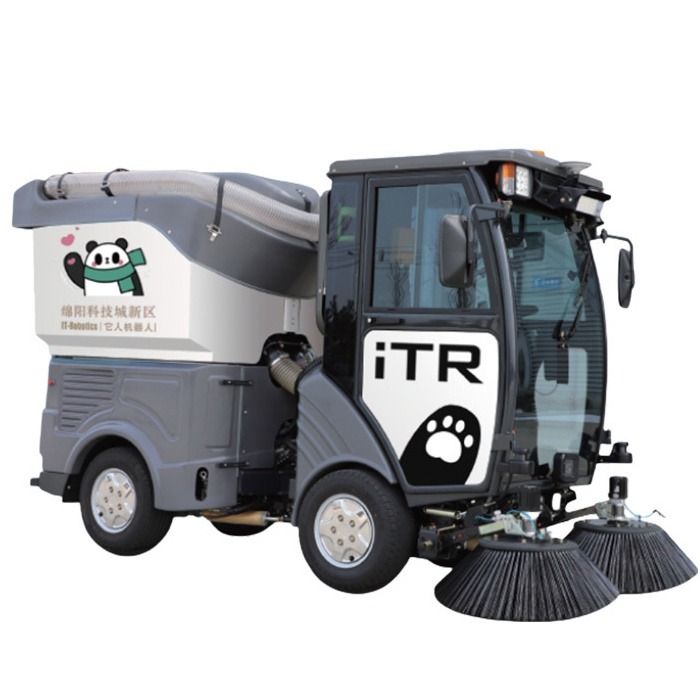

iTR OM1 Outdoor Municipal Street Sweeper

Most street cleaning still depends on a crew that starts before sunrise and works until the light fades. The iTR OM1 Outdoor Municipal Street Sweeper is built around a different idea: a sweeper that plans its own route, reads its surroundings and keeps working while managers follow its progress from a screen.

The product is available through this page, by quotation.

Background

ITR ROBOT and the cleaning-robot lineage

ITR ROBOT develops cleaning robots for commercial and public spaces. Its range runs from indoor floor scrubbers and floor sweepers to outdoor sweepers, and the OM1 sits at the outdoor, municipal end of that family. Where the indoor machines work inside buildings, the OM1 is meant for roads, squares and open grounds, where weather, traffic and uneven surfaces set the terms.

That lineage shows in the way the OM1 is described: a machine made for a specific job rather than a general-purpose platform. The OM1 was created by iTR specifically for the needs of municipal road cleaning, with sweeping, vacuuming, ash reduction and other functions.

Positioning and key technology

The OM1 combines a cleaning system with an autonomy stack. On the cleaning side, it carries a sweeping unit with a sweeping width of 185cm, a 150L water tank and a 500L container. It also supports automatic edge cleaning and cover cleaning.

On the autonomy side, it uses comprehensive path planning together with real-time positioning and tracking. Multi-sensor fusion perception lets it read its surroundings, and it recognizes traffic lights. It also builds its own high-precision maps, with a maximum mapping area of 1000000㎡. Autonomous obstacle avoidance and automatic emergency safety braking are part of its safety functions, and operators can switch between manual and automatic modes.

Power comes from a lithium iron phosphate battery with a capacity of 40.3KWh. Its uptime is ≥8h, which is the figure that matters most to a crew planning a full shift.

Technical Specifications

Specifications as published by the manufacturer; confirmed against the datasheet at quotation.

The manufacturer has not published the charging time, the gradeability, the operating temperature, the IP rating, the contents of the box, the rated voltage, the noise level or the sweeping productivity; they are confirmed at quotation.

What makes the OM1 different from a commercial outdoor sweeper?

The clearest difference is purpose. A commercial outdoor sweeper is usually chosen for a defined site such as a campus, a plant or a car park. The OM1 is a municipal machine, made for road cleaning, and its feature list reflects that. Traffic light recognition is the most telling item, because a machine that only has to stay inside a fenced site has little use for it.

Size and capacity point the same way. A 500L container and a 150L water tank allow long runs between emptying and refilling. A 185cm sweeping width covers a wide strip of road in a single pass. With a maximum speed of 25km/h, the machine can also move between work areas without feeling like a slow indoor unit taken outside.

For smaller sites, the commercial range may suit better. The iTR W1 Commercial Outdoor Sweeper and the iTR W2 Commercial Outdoor Sweeper belong to that group, and your quotation request is the place to compare them with the OM1 against your own site.

How does the OM1 find its way and stay safe?

Navigation starts with mapping. The OM1 builds its own high-precision maps, and the maximum mapping area is 1000000㎡. On top of the map, comprehensive path planning decides how the machine covers the area, while real-time positioning and tracking tell it where it is on that route.

Perception relies on multi-sensor fusion, which means several sensors feed one picture of the surroundings instead of a single sensor being trusted alone. Traffic light recognition is added for crossings. When something enters its path, autonomous obstacle avoidance steers around it, and automatic emergency safety braking is available as a last line of defense.

A person can still take over. The OM1 allows manual and automatic mode switching, so an operator can move it by hand when the situation calls for it and then return it to its task.

Who is the OM1 for?

The first group is municipal and public-works teams responsible for roads and public squares. For them, the combination of sweeping, vacuuming and ash reduction, together with remote task scheduling, offers a way to extend cleaning hours without extending crew hours.

The second group is operators of large private grounds. Its application scenes include parks, factories, airports, commercial squares, campuses and parking lots. A site manager with long access roads, wide forecourts or large lots will see the value of a 185cm sweeping width and a 500L container.

The third group is facility contractors who sell cleaning as a service. Automatic task feedback and real-time monitoring of the robot's running state support digital management, which makes reporting to a client easier.

Buyers with smaller outdoor areas, or who need a lighter machine, may be better served by the iTR W1 Commercial Outdoor Sweeper or the iTR W2 Commercial Outdoor Sweeper. Other machines in the same family are collected under Cleaning Robots.

What is the OM1 used for?

1. Road cleaning. Sweeping, vacuuming and ash reduction on municipal roads, the job the OM1 was created for.
2. Public squares and parks. Regular cleaning of commercial squares and parks where foot traffic leaves debris through the day.
3. Airport and factory grounds. Keeping wide aprons, access roads and yards clear on large sites.
4. Campus and parking-lot upkeep. Scheduled passes over lots and campus roads, including automatic edge cleaning and cover cleaning.
5. Hard-surface care. Cleaning marble, granite, terrazzo, concrete, epoxy resin, tile, wood floor and other hard ground.
6. Managed fleet operation. Remote vehicle status query, remote video monitoring, remote control and remote task scheduling from a central desk.

Pricing and Availability

We do not print prices on this page. Please request a quotation, and we will respond with the details for your project. Delivery, customs and support are arranged with the quotation. The iTR OM1 Outdoor Municipal Street Sweeper is available on this page.

Frequently Asked Questions

How wide is the sweeping path?

The sweeping width is 185cm. The machine itself measures 3.5×1.2×2.1m (Length×Width×Height).

How long can the OM1 work on one charge?

Uptime is ≥8h, powered by a 40.3KWh lithium iron phosphate battery.

How much debris and water can it carry?

The container holds 500L and the water tank holds 150L.

Can it work without an operator?

Yes. It uses path planning, real-time positioning, obstacle avoidance and emergency braking in automatic mode. Operators can also switch to manual mode and control it remotely.

Does it recognize traffic lights?

Yes, traffic light recognition is part of its perception system, together with multi-sensor fusion and self-built high-precision maps.

Can managers follow its work from the office?

Yes. Remote vehicle status query, remote video monitoring and remote task scheduling are supported. The robot also feeds back task details automatically, so managers can monitor its running state in real time.

Where can I buy the iTR OM1 and what does it cost?

The OM1 is available through this page, by quotation. We do not list a price here; send a request and we will prepare a quotation for your project.

Summary

The OM1 answers a simple question: what if the road sweeper could do the planning, the watching and the reporting itself? It cleans with a 185cm sweeping width, carries 500L of debris, runs for ≥8h on a 40.3KWh battery and recognizes traffic lights. Remote tools keep managers informed throughout. For a machine that works the streets while your crew focuses elsewhere, this page is the starting point.
