SEER Robotics SlimReach 1400 Autonomous Reach Truck - EU Model (SSR-1400EU)
In stock
- BRAND:
- SEER ROBOTICS
- MODEL:
- SLIMREACH 1400 EU
- PART #:
- SSR-1400EU
- ORIGIN:
- China
- Warranty:
- 12 MONTHS
- AVAILABILITY:
- SUBJECT TO AVAILABILITY
- SKU:
- SEER-Robotics-SSR-1400EU

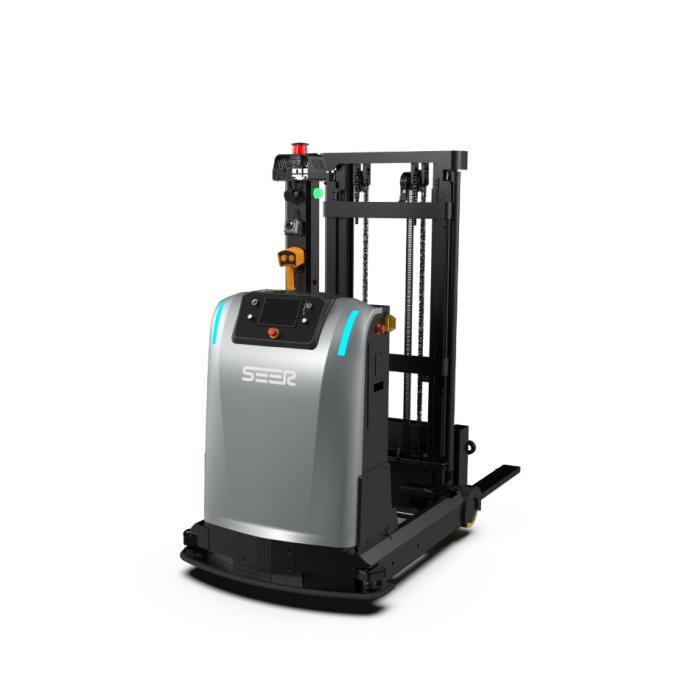

SEER Robotics SlimReach 1400 Autonomous Reach Truck - EU Model (SSR-1400EU)
A reach truck earns its place by working in the aisles where a wider machine cannot turn. The SEER Robotics SlimReach 1400 Autonomous Reach Truck - EU Model (SSR-1400EU) takes that idea and removes the driver. It handles pallets on its own, finds them with AI vision and steers by laser, all in a body only 1192 mm wide.
The product is available through this page, by quotation.
Background
SEER Robotics and its lineage
SEER Robotics is listed in Hong Kong under the code 06106.HK. It is a platform-based embodied intelligent robotics company built around the Robot Brain, and it serves more than 2,500 customers worldwide with intelligent robotics solutions. That customer base matters to a buyer in the Caribbean, because it means the technology has been used in many different sites and layouts.
The SlimReach 1400 sits in the manufacturer's range of autonomous lift and handling vehicles. The same family includes counterbalance trucks, counterbalanced forklifts and a pallet truck, each aimed at a different handling job. The reach truck is the member of the family built for tighter storage layouts. Three versions of the SlimReach 1400 exist: SSR-1400, SSR-1400EU and SSR-1400US. This page covers the EU Model, SSR-1400EU.
Positioning and key technology
The SSR-1400EU is positioned around two ideas: a slim robot body and flexible reach. The slim body shows in the numbers, with a width of 1192 mm and a minimum passage requirement of 1384 mm. Navigation is laser SLAM, which means the truck builds and uses a map of the building, and its position accuracy is ±10 mm (±0.39 in). The lidar count is 1+3.
The second key technology is pallet recognition. With AI deep learning, the truck recognizes pallets in various specifications and different colors, wrapped or damaged pallets, and racks and cages. In a real warehouse, pallets are rarely perfect, so this ability decides whether an automated truck is useful or needs constant help.
The truck has also passed CE certification (ISO 3691-4:2023) and other related certifications. This is the version that carries the EU designation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SSR-1400EU |
| Certification | CE certification (ISO 3691-4:2023) and other related certifications |
| Rated load capacity | 1400 kg (3086.47 lb) |
| Load center distance | 500 mm (19.69 in) |
| Navigation type | Laser SLAM |
| Operation type | Automatic navigation |
| Navigation position accuracy | ±10 mm (±0.39 in) |
| Lidar number | 1+3 |
| Pallet type | Open pallet / closed pallet |
| Dimensions L x W x H | 2190 x 1192 x 2228 mm |
| Fork dimensions L x W x H | 1220 x 122 x 40 mm (48.03 x 4.8 x 1.57 in) |
| Fork outer width | 400 to 700 mm (adjustable) |
| Minimum passage requirement | 1384 mm |
| Minimum turning radius | 1482 mm (58.35 in) |
| Weight (with battery) | 2060 kg (4541.52 lb) |
| Driving speed (full load / no load) | 1.2 / 1.5 m/s (3.94 / 4.92 ft/s) |
| Battery | 24 V / 210 Ah (lithium iron phosphate) |
| Comprehensive battery life | 8 h |
| Charging time (10% to 80%) | 2.5 h |
| Customization | Four methods: fork width, overall height, color and logo |
Specifications as published by the manufacturer; confirmed against the datasheet at quotation.
The manufacturer has not published the packaging dimensions, the IP rating, the noise level, the drive motor power, the lift speed, the included accessories, the wireless connectivity standard or the fleet software compatibility; they are confirmed at quotation.
What makes the SSR-1400EU suited to narrow aisles?
Aisle width is the cost that every warehouse pays twice, once in the building and again in every pallet position given up to travel space. A truck that needs less room to maneuver lets a site keep its racking tight, or lets an existing site automate without rebuilding.
The SSR-1400EU is 1192 mm wide, and its minimum passage requirement is 1384 mm. The minimum turning radius is 1482 mm (58.35 in). Together these figures give a planner what is needed to test the truck against a real layout, using the drawings of the aisles, the cross aisles and the dock areas.
The forks add flexibility. Their outer width adjusts from 400 to 700 mm, so one truck can take pallets and containers of different widths. The pallet type is open pallet or closed pallet. The load center distance is 500 mm (19.69 in), and the rated load capacity is 1400 kg (3086.47 lb).
Speed changes with the load: 1.2 m/s (3.94 ft/s) at full load and 1.5 m/s (4.92 ft/s) with no load. A truck that slows only a little when loaded makes planning simpler, because cycle times do not swing much between a full run and an empty return.
How does the SSR-1400EU find and handle pallets?
Navigation and pallet handling are separate problems, and the truck solves them with different tools. For navigation it uses laser SLAM, with a lidar count of 1+3 and a position accuracy of ±10 mm (±0.39 in). The operation type is automatic navigation, so the truck moves between points by itself.
For the pallet itself, the truck uses AI deep learning. It recognizes pallets in various specifications and different colors, wrapped or damaged pallets, and racks and cages. For a site where loads arrive from many suppliers and in mixed condition, this is the practical difference between a truck that needs tidy pallets and one that copes with ordinary ones.
Power is a 24 V / 210 Ah lithium iron phosphate battery. The comprehensive battery life is 8 h, and charging from 10% to 80% takes 2.5 h. The weight with battery is 2060 kg (4541.52 lb), and it is a point to check against the floor loading of the site.
Who is the SSR-1400EU for?
The first group is warehouse and distribution operators who have narrow aisles and a mix of pallet types. They benefit from the slim body and the AI pallet recognition, and from a truck that can run through a full shift on its battery.
The second group is factories that move pallets between lines, buffer racks and storage. Here the position accuracy of ±10 mm (±0.39 in) and the adjustable forks support repeatable handling at fixed points.
The third group is projects that must meet European conformity requirements. The SSR-1400EU is the version that has passed CE certification (ISO 3691-4:2023), so it suits sites that follow those rules.
Buyers outside those requirements may look at the other versions of the same truck: the base SEER Robotics SlimReach 1400 Autonomous Reach Truck (SSR-1400) and the SEER Robotics SlimReach 1400 Autonomous Reach Truck - US Model (SSR-1400US). Please ask about the differences between these versions when you request a quotation. Buyers who want to compare the wider range can browse the Reach Trucks category, or the Factory Robots category for other automation in a plant.
Customization is also worth raising early. Four methods are supported: fork width, overall height, color and logo. A buyer with a particular rack height or brand requirement should name it in the first request.
What is the SSR-1400EU used for?
- Pallet transfer between zones. Moves pallets between receiving, storage and dispatch without a driver.
- Narrow-aisle storage handling. Works in racked layouts where the slim body and the turning radius make the difference.
- Line-side supply in factories. Delivers loaded pallets to production areas at fixed points with ±10 mm (±0.39 in) accuracy.
- Handling mixed or imperfect pallets. Uses AI recognition for wrapped or damaged pallets, racks and cages.
- Shift-long operation. Runs on a 24 V / 210 Ah lithium iron phosphate battery with a comprehensive battery life of 8 h.
- Branded or adapted fleets. Takes custom fork width, overall height, color and logo for sites with particular needs.
Pricing and Availability
Pricing for the SSR-1400EU is given by quotation and depends on the configuration, including any of the four customization options. Please send the details of your site, the pallets and the layout with your request. Delivery, customs and support are arranged together with the quotation. The SEER Robotics SlimReach 1400 Autonomous Reach Truck - EU Model (SSR-1400EU) is available on this page.
Frequently Asked Questions
What load can the SSR-1400EU carry?
The rated load capacity is 1400 kg (3086.47 lb) at a load center distance of 500 mm (19.69 in).
How does the truck navigate?
It uses laser SLAM with a lidar count of 1+3 and automatic navigation. The navigation position accuracy is ±10 mm (±0.39 in).
What space does it need to work?
The truck is 1192 mm wide and needs a minimum passage of 1384 mm. The minimum turning radius is 1482 mm (58.35 in).
How long does the battery last and how fast does it charge?
The comprehensive battery life is 8 h from a 24 V / 210 Ah lithium iron phosphate battery. Charging from 10% to 80% takes 2.5 h.
Can it handle damaged or wrapped pallets?
Yes. AI deep learning lets it recognize pallets in various specifications and colors, wrapped or damaged pallets, and racks and cages.
Can the truck be customized?
Four customization methods are supported: fork width, overall height, color and logo. Please state your needs when you request a quotation.
Where can I buy the SSR-1400EU and what does it cost?
It is available through this page, by quotation. The cost depends on the configuration and the delivery, so please send a request and we will reply with a quotation.
Summary
The question at the start was how much machine fits in how little aisle. The SSR-1400EU answers with a 1400 kg (3086.47 lb) rated load in a body 1192 mm wide, laser SLAM navigation with ±10 mm (±0.39 in) accuracy, AI pallet recognition and a CE-certified design under ISO 3691-4:2023. If a slim autonomous reach truck fits your site, this page is the starting point.
